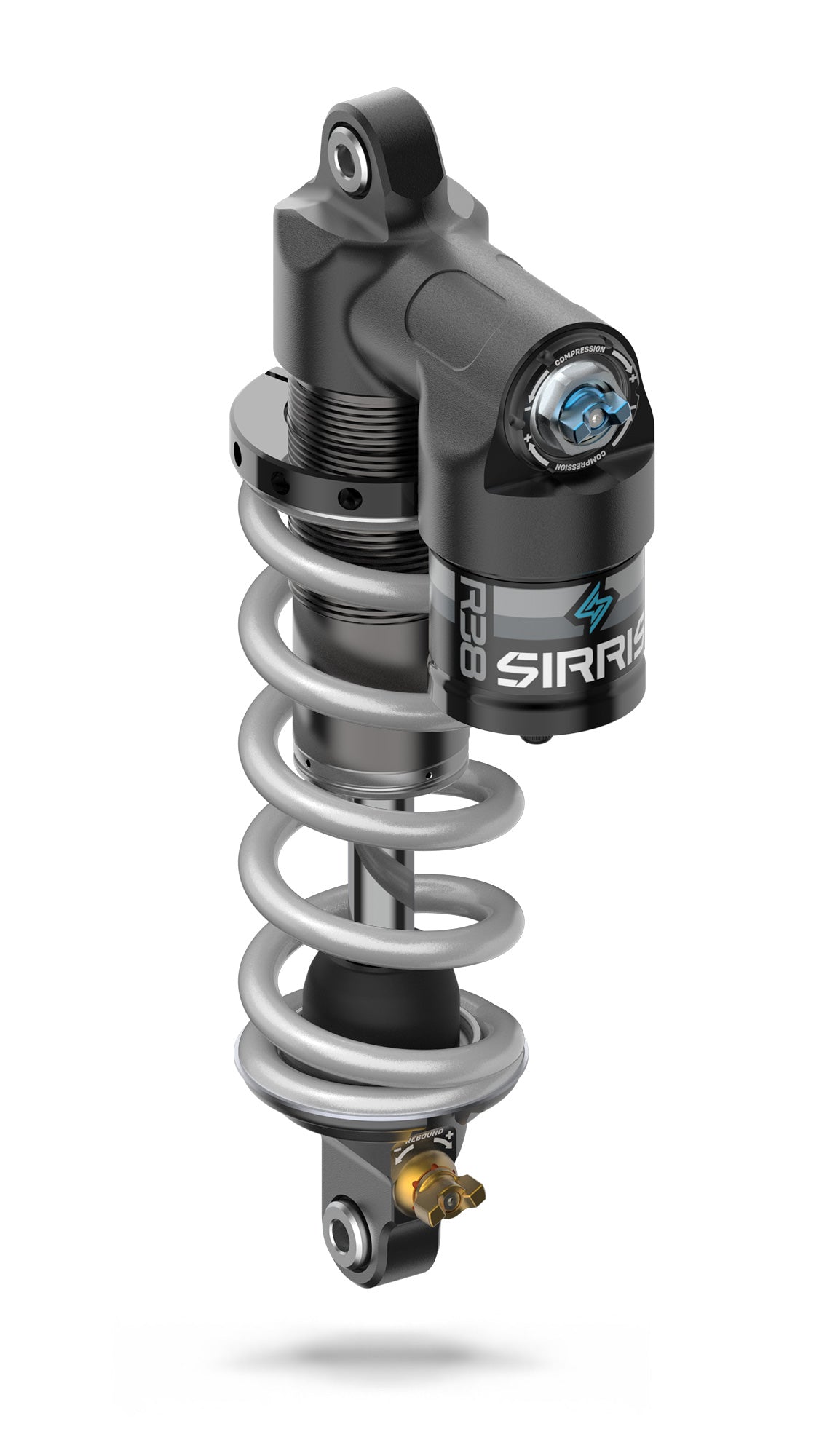

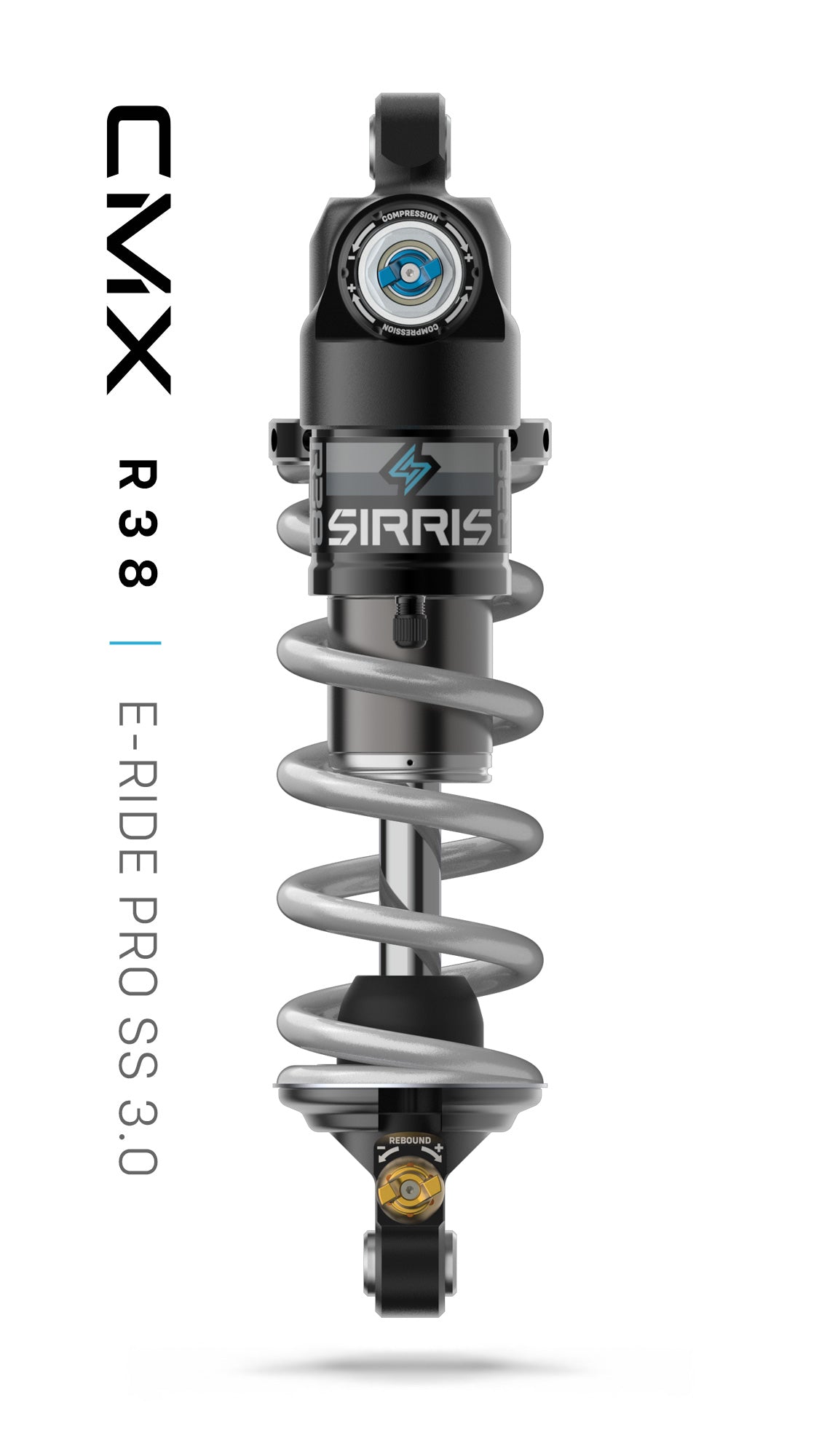

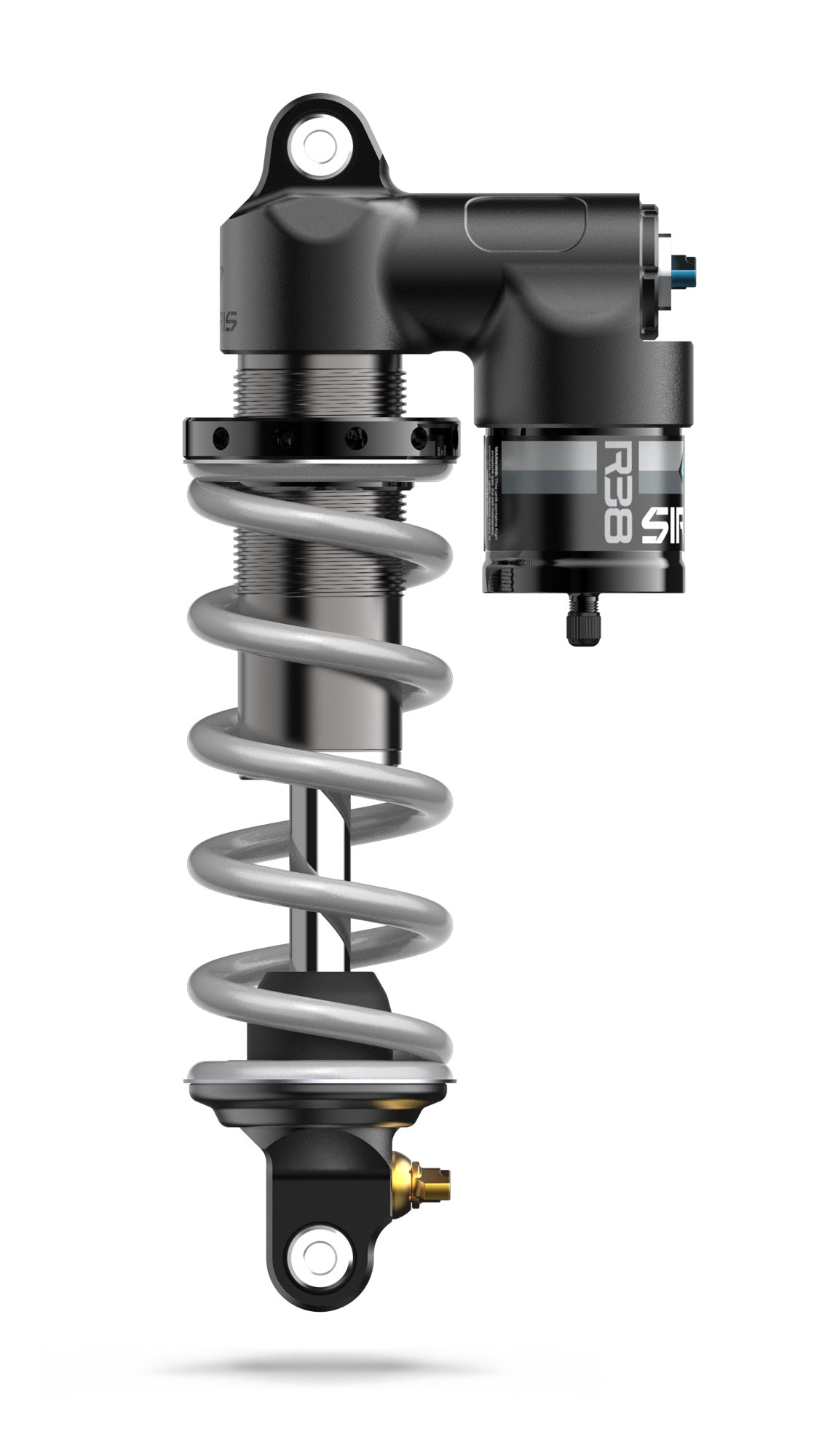

🏁 SIRRIS R38 | 2SC REAR SHOCK | E-Ride Pro 3.0 ⚡

Big moto performance. Bombproof durability. Real big bike suspension technology in a compact e-moto shock 🔥

The R38 brings proven R46 internal architecture into an oversized chassis built for serious abuse. Where other shocks in this class fade, leak and fail, this one is engineered to keep charging.

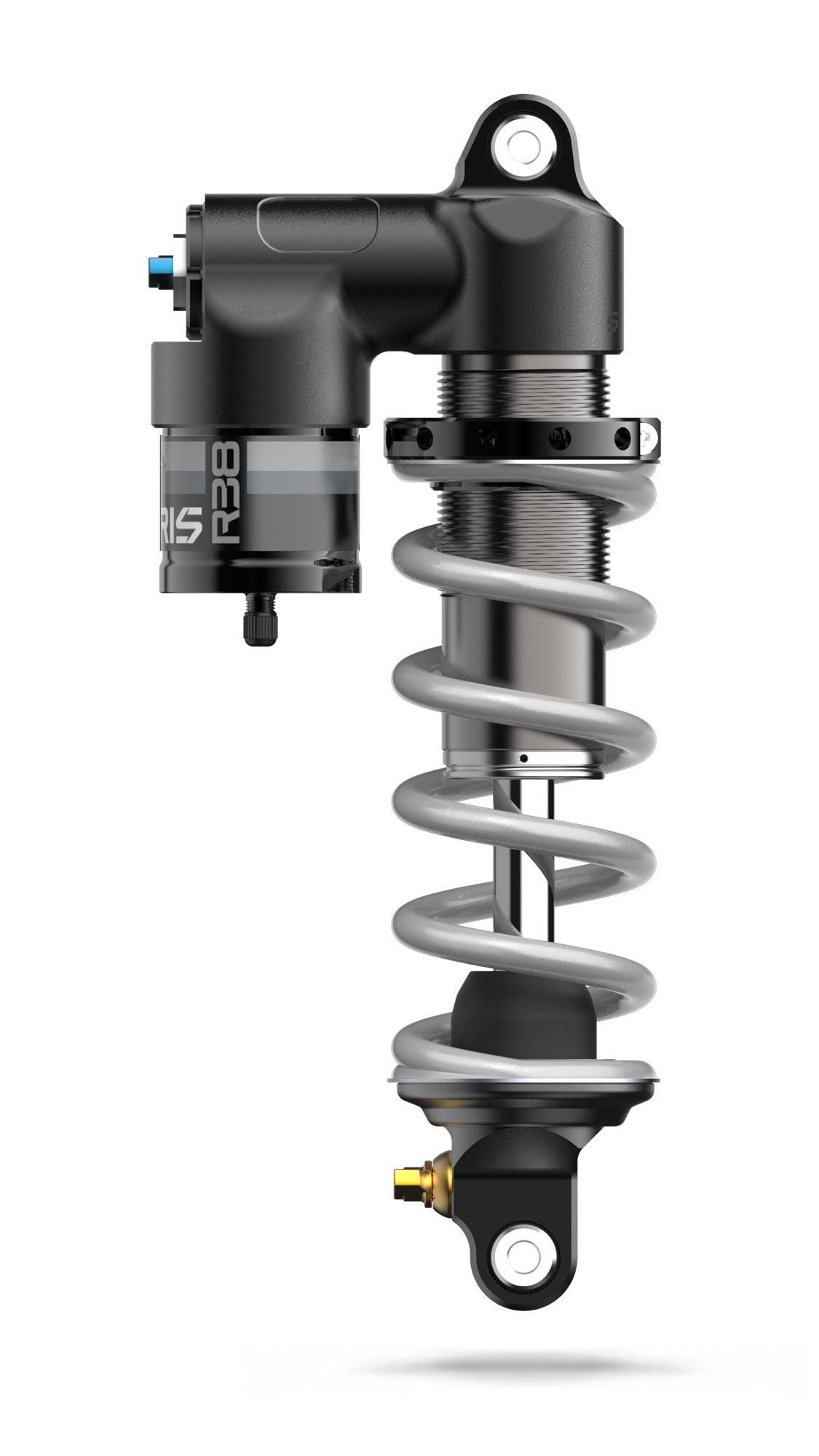

Two Stage Compression gives you independent high speed and low speed adjustment, with tool free low speed and rebound clickers so you can change your setting between runs with your fingers.

⚙️ Key Specifications

• 🏗️ Architecture: Piggyback, steel spring
• 📏 Stroke: 78 mm
• 📐 Length: 289 mm
• ⚖️ Weight: 3.3 lbs / 1.5 kg (without spring)
• 🎛️ Adjusters: 2SC Two Stage Compression, independent high and low speed
• 👆 Low Speed Compression: tool free, 18 clicks
• 🔧 High Speed Compression: 24 clicks, 20 mm hex
• 🔄 Rebound: tool free, 24 clicks
• 🌀 Preload: spring preload adjust
• 🔵 Piston: Ø38 mm high flow, CNC 6061 billet aluminium, type 3 hard anodised
• ⭕ Piston Band: Hard band
• 🔩 Shaft: Ø16 mm OD chrome plated, induction hardened steel, hollow, Ø5.5 mm ID — the same shaft as the full size R46
• 🛡️ Shock Body: Seamless 6061 aluminium, type 3 hard anodised, ACME thread
• 🛢️ Reservoir: R46 spec internal floating piston, sized around the 16 mm shaft
• ⚙️ Bearings: Chrome plated, teflon lined spherical, top and bottom eyelets
• 🧱 Bottom Out: MCU bumper
• 🪶 Top Out: Rubber bumper
• 🧴 Seals: HNBR
• 💧 Damping: Pro level CMX tune sharing the R46 high flow base valve cavity architecture

🏋️ Rider Weight Ranges & Spring Rates

Two spring options. Listed weights are rider weight without riding gear, with 15 lbs of gear already factored into the ranges.

• 🔵 Medium (140 to 180 lb): 80 N/mm spring
• 🔴 Heavy (180 to 220 lb): 90 N/mm spring

📦 What's Included

• ✅ Sirris R38 2SC rear shock
• ✅ Steel spring matched to your selected rider weight range
• ✅ Pressurised piggyback reservoir, factory charged
• ✅ Fitting hardware

🚨 CRITICAL — LINKAGE REQUIRED, SOLD SEPARATELY

❌ The stock E-Ride Pro linkage WILL NOT WORK with the R38 shock.

🔧 Sirris worked with Prickly to develop an R38 specific linkage which is required to fit this shock. It raises the rear of the bike by 25 mm to accommodate the 289 x 78 mm R38.

📐 To keep the bike balanced, the CMX fork drop clamp can be added to raise the front by an equivalent 25 mm.

💬 Message us before ordering and we will make sure you have the linkage and everything else you need. Ordering this shock without the correct linkage means you cannot fit it.

🚀 Why Choose The R38?

• 💪 R46 shaft and reservoir. Full size internals in a compact package, not a scaled down toy
• 🎛️ True 2SC adjustment. Independent high and low speed compression, which almost nothing else in this class offers
• 👆 Tool free clickers. Change low speed compression and rebound between runs without carrying tools
• 🌡️ Stays cool. High flow internals maintain consistent damping under repeated hard hits and heat
• ⚡ Built to pair with F43 CMX forks. Front and rear tuned to work as one balanced package
• 🛠️ Sprung for you. Two spring rates so it arrives set up for your weight

⚠️ Important — Please Read Before Ordering

🛠️ Made to order. Every R38 is built and sprung to your selected weight range. These are not held as generic stock items.

⏱️ Build time: approximately 5 to 15 working days.

🚚 Shipping time: approximately 5 to 10 working days depending on destination.

📅 Total estimated lead time: approximately 2 to 5 weeks from order. These are estimates and are not guaranteed.

🚫 Once your build has entered production, the order is non cancellable and non refundable due to the bespoke spring rate, valving and labour involved.

💬 We will keep you updated at every stage, from build confirmation through to dispatch.

📮 Order Tracking & Updates

Full tracking is issued the moment your shock leaves us. Once the parcel is with the courier, transit times are outside of our control and occasional courier delays can happen, particularly on international shipments. International customers may be responsible for any duties and taxes charged on import.

❓ Got Questions?

Message us before you order, especially about the linkage. We ride these bikes and we set this suspension up, so we will make sure you get a complete working setup rather than just take the sale 👊

Sirris R38. Full size moto damping for your E-Ride Pro 3.0 ⚡🏁
