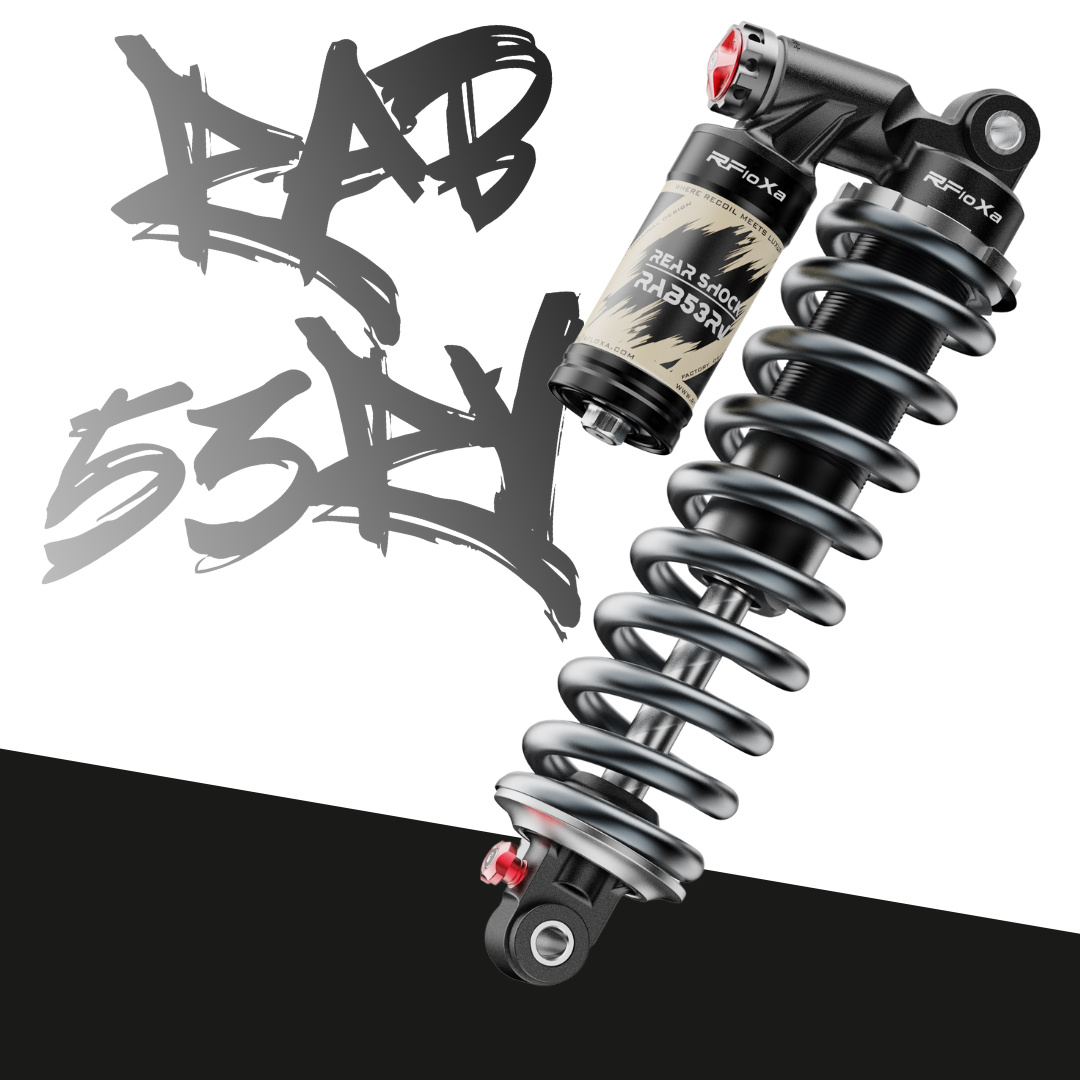

RFLOXA RAB53RV REAR SHOCK FOR SURRON & TALARIA STING

About this item

① Advanced Shock Absorption💥 - The RAB53RV rear shock absorber features an external nitrogen reservoir and a sophisticated oil-gas separation damping structure. Designed to provide superior shock absorption, it effectively reduces impact and enhances riding comfort across a wide range of conditions.

② Versatile Performance💥 - Ideal for E-BIKES, bicycles, and off-road electric bikes, the RAB53RV is built to handle diverse terrains and challenging rides. It offers comprehensive adjustability with multi-stage rebound, high-speed compression, and low-speed compression damping settings. Customization options are available upon request.

③ Durable Construction💥 - Constructed with AL6061-T6 forged aluminum for the upper mount and AL6061-T6 aluminum alloy for the main tube, this shock absorber ensures exceptional strength and durability. The 42CRMO main shaft and 55CRSI spring wire further enhance its robustness and reliability.

④ Precision Adjustments💥 - Equipped with multi-stage rebound and compression damping adjustments, the RAB53RV allows you to fine-tune the shock absorber for your specific riding style. The C-ring retainer spring base ensures stability during rides, while the easy-to-remove spring design simplifies maintenance.

⑤ Enhanced Comfort💥 - The shock absorber features a rubber bladder in the air chamber, reducing heat-induced damping fade and providing a finer response to small bumps. The low-speed compression damping controls the shock absorber's performance during gradual impacts like pedal strokes and rough terrain, while the high-speed compression damping handles sudden impacts and high-speed encounters, ensuring stability and control during intense riding moments.

High and Low-Speed Compression Damping Explained:

• Low-Speed Compression Damping (LSC): This setting controls the shock absorber's response to gradual impacts and low-speed movements. It’s essential for reducing bounce and instability during everyday riding activities such as pedaling, climbing stairs, or traversing uneven surfaces. Proper adjustment of LSC enhances ride stability and comfort.

• High-Speed Compression Damping (HSC): This setting manages the shock absorber's response to rapid impacts and high-speed situations, such as drops or sudden bumps. It prevents the shock absorber from becoming too soft during intense impacts, maintaining control and stability to prevent loss of balance and potential accidents.

Weight:

• 450lbs spring - 80-100kg
• 550lbs spring - 100kg-130kg
• 600lbs spring - 130kg-180kg

Adjustments: Rebound / High-Speed Compression / Low-Speed Compression

Available Sizes (Eye to Eye x Travel):

• 220 × 66 mm (8.66 × 2.60 inches)
• 240 × 76 mm (9.45 × 2.99 inches)
• 265 × 83 mm (10.43 × 3.27 inches)

Features:

• External Nitrogen Reservoir
• Oil-Gas Separation Damping Structure
• Multi-stage Rebound, High-Speed Compression, and Low-Speed Compression Damping Adjustment
• AL6061-T6 Forged Upper Mount
• AL6061-T6 Aluminum Alloy Main Tube
• 42CRMO Main Shaft
• 55CRSI Spring Wire
• C-ring Retainer Spring Base for Stability
• Easy-to-remove Spring Design
• Rubber Bladder in Air Chamber for Enhanced Small-Bump Absorption
• One-Step Lock Com Adjuster
