Weight 16.8KG

Cells Molicel P45b 21700 (200).

BMS set at 550  Amps Peak.  Full battery protection including over discharge (shorts) over heating etc.

Each cell with additional individual wrapping for added protection.

Additional layers of fibre board, Kapton tape, heat shrink.

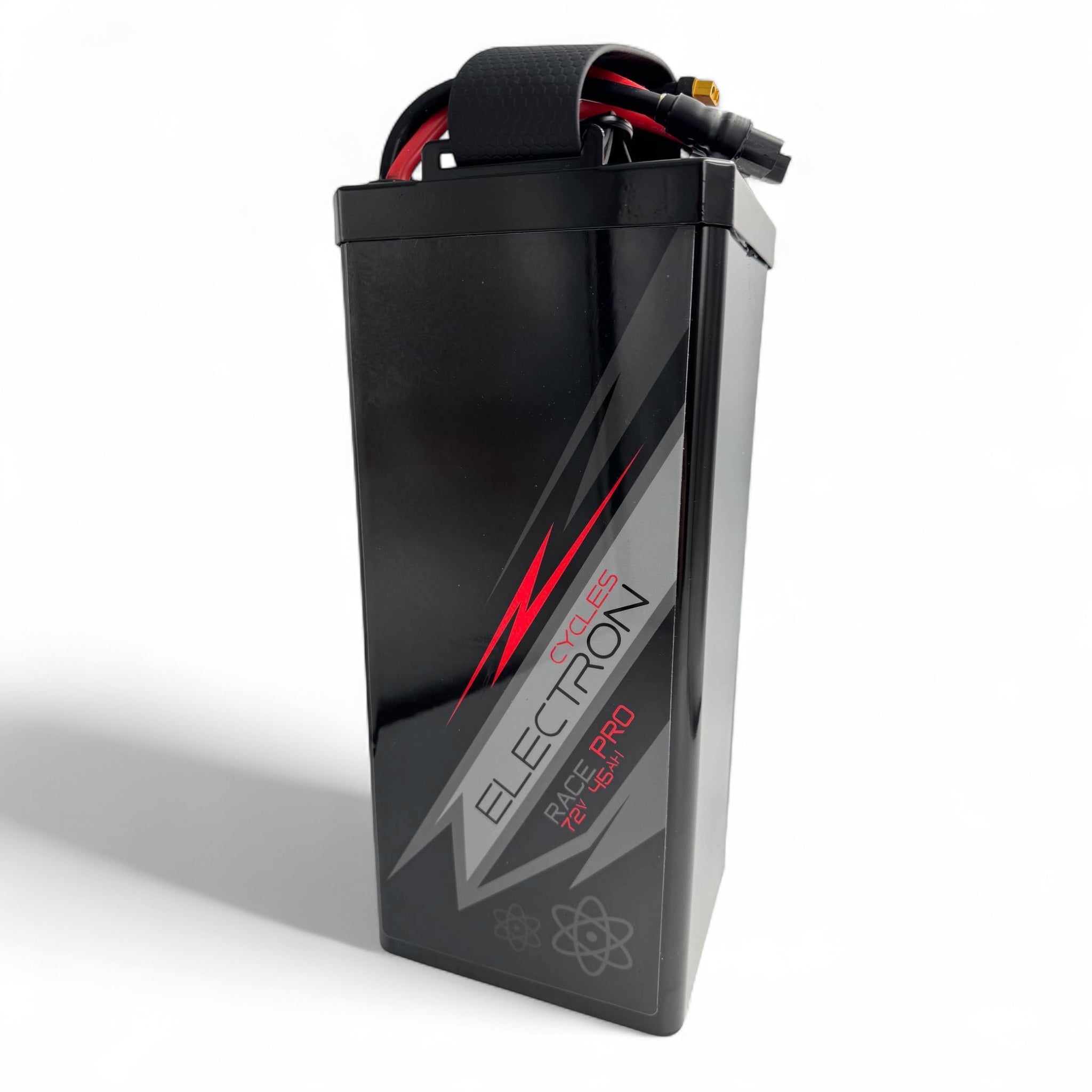

Stainless steel 316 grade sealed casing/exoskeleton with internal/external powder coated  to give maximum protection and insulation.

Pure copper sheet connections.

Bluetooth BMS giving individual series condition with balanced charging (we do not recommend altering our settings as may invalidate your warranty).

An integrated chord handle for lowering the battery in and out.

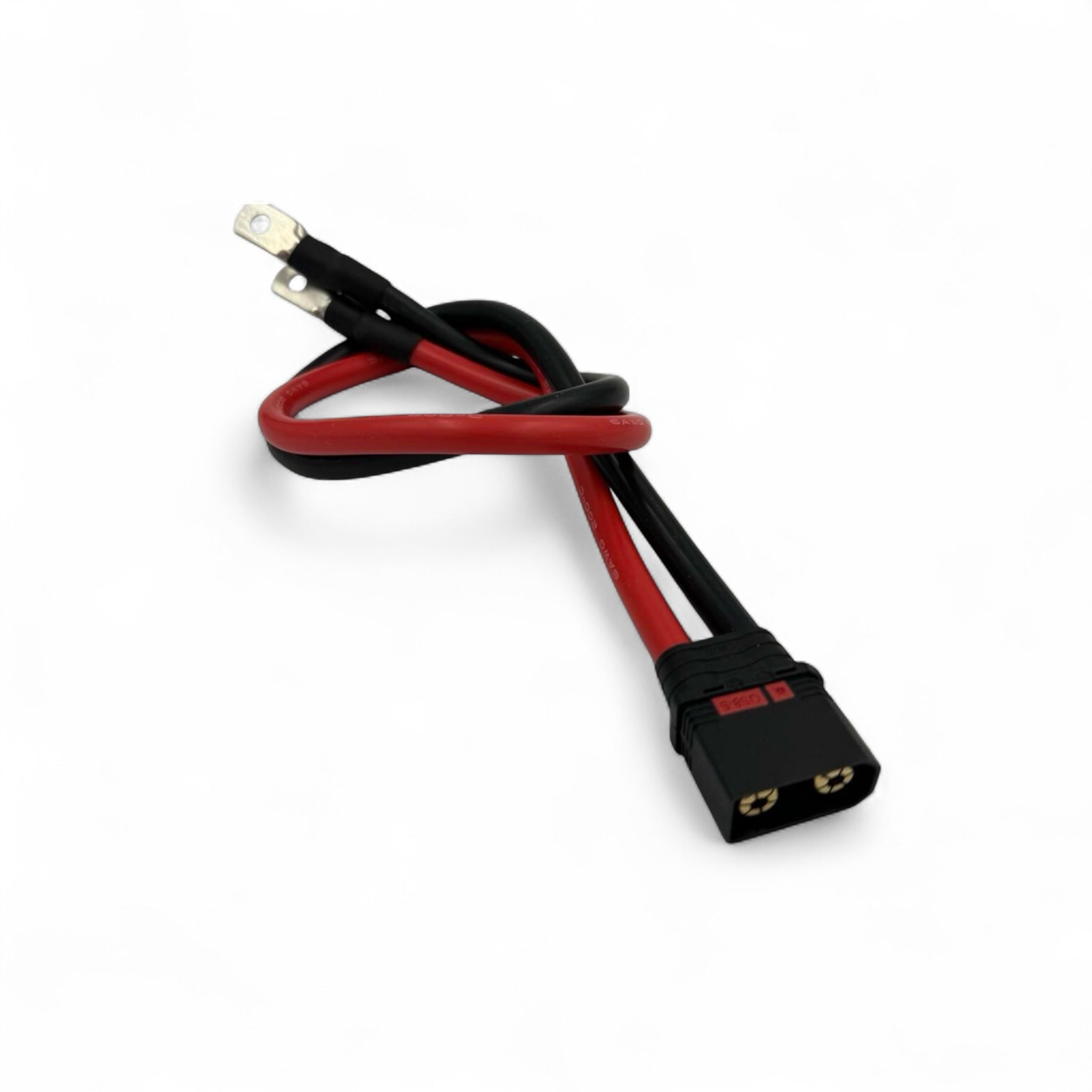

Charging port via an XT60 connector.

Battery lid hinge extenders for Sur Ron.

Height 353mm to top of lid not including handles

Brand: Molicel
Model: P45b
Size: 21700
Chemistry: INR
Nominal Capacity: 4500mAh
Nominal Voltage: 3.6V
Discharge: 36A Continuous per cell Max 45A
Positive: Flat/Button Top/Tabs (please select)
Rechargeable: Yes
Dimensions: 21.1mm x 70.4mm

Connecting to Bike

When connecting the battery to the bike and to avoid a spark, turn the red trip switch on the bike to off. Connect the older original power cable and then turn the red trip to on. Then connect the new power leads. Removing the battery has no special order.

Battery Charging

First time charging is VERY important. Always connect the charger to the battery with the charger powered up at the mains first. This will stop a “Connection Spark”. The battery needs a “Balance Charge” on first charge. Please charge for 12 hours first time.  Always charge your battery in a safe place and never unsupervised.

Charger Not Included
